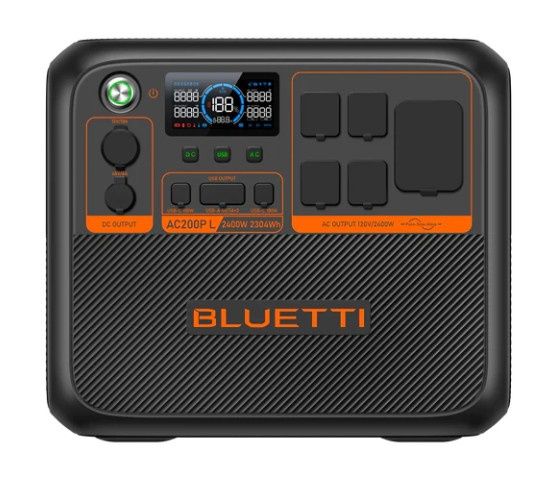

The AC200P L delivers 2,400W rated power, covering most loads in your RV or at home. Activate the Power Lifting Mode via the BLUETTI App, and you can kick it up a notch and run power-hungry heating devices up to 3,600W.
Achieve Super-Fast Charging to 80% in Just 1 Hour.
Expandable up to 8kWh.
Perfectly Compatible with B210P, B230, and B300 Expansion Batteries. (AP090D To Aviation cableis required to connect the AC200P L to the B210P.)
Delivers 2,400W Rated Power, Meeting the Needs of Various Loads in Your RV or Home.
BATTERY INFO
Capacity: 2304Wh
Type: LiFePO4 (Lithium Iron Phosphate)
Life Cycles: 3,000+ Cycles to 80% Original Capacity
Shelf-life: Recharge to 80% Every 3-6 Months
Management System: MPPT Controller, BMS, etc.
OUTPUT
AC Outlets: 4 ×120V/20A
1 x 120V/30A NEMA TT-30
2,400W In Total
Inverter Type: Pure Sine Wave
Surge Power: 2,500W
USB-C Port: 2 ×100W Max.
USB-A Port: 2 ×18W (Each Port)
12V DC Outlet: 1 ×12V/10A (Car outlet, regulated.)
48V DC Outlet: 1 ×48V/8A (RV Outlet)
Wireless Charging Ports: 2 ×15W
INPUT
AC Power Input (Turbo Mode): 2,400W Max.
Solar Input: 1,200W Max, 12V-145VDC, 15A
Car Input: 12/24V from Cigarette Lighter Port
Max Input: 2,400W
RECHARGE TIMES
AC Charging Cable
(950W Turbo Charging): ≈1.5 Hours
Solar Panel (s)
(1,200W): ≈2.5 Hours (With prime sunshine, ideal orientation and low temperature)
GENERAL
Pass-through Charging: Yes
Weight: About 63.5lbs / 28.8kg
Dimensions (L x W x D): 420mm × 280mm × 366.5mm / 16.5in × 11in × 14.4in
